Create a report:

This article assumes you are familiar with the basics of writing custom reports in Spira.
In this example we will build a custom report with custom ESQL section.

To create the report you need to:

  1. Go to Administration  > Edit Reports
  2. Click on Create a new Report (at the bottom of the list of existing Reports)
  3. Specify that it should allow generation in MS-Word, Excel, HTML and PDF formats
  4. Choose to add a Custom Section:

SQL Query:

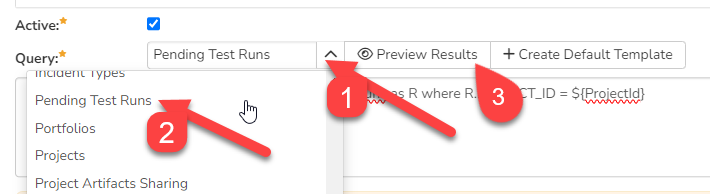

  1. Choose the Pending Test Runs from predefined queries list
  2. You'll see the automatic query generated filtering the pending test runs by Product
  3. Click Preview Results to see the output
  4. It can be customized so to get the list of pending test runs:
    - To see all the pending test runs in the system: delete the filtering WHERE statement so the final query will be

    select value R from SpiraTestEntities.R_PendingTestRuns as R

    - Getting the name of the Program (product group) the pending test run belongs to:

    SELECT PTR.TEST_RUNS_PENDING_ID, PTR.NAME, PTR.CREATION_DATE, PTR.LAST_UPDATE_DATE, PTR.COUNT_PASSED,
PTR.COUNT_FAILED, PTR.COUNT_BLOCKED, PTR.COUNT_CAUTION, PTR.COUNT_NOT_RUN,PTR.COUNT_NOT_APPLICABLE,
PTR.TESTER_LOGIN, PTR.TESTER_FULLNAME, PTR.TEST_SET_NAME, PR.PROJECT_GROUP_NAME
from SpiraTestEntities.R_PendingTestRuns as PTR
INNER JOIN SpiraTestEntities.R_Projects as PR ON PTR.PROJECT_ID = PR.PROJECT_ID



  5. Click the 'Create Default Template' option to generate the following XSLT report template or use the generated XSLT template:
    <?xml version="1.0" encoding="utf-8"?>
<xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:msxsl="urn:schemas-microsoft-com:xslt" exclude-result-prefixes="msxsl">
  <xsl:template match="/RESULTS">
    <table class="DataGrid"><tr><th>TEST_RUNS_PENDING_ID</th><th>NAME</th><th>CREATION_DATE</th><th>LAST_UPDATE_DATE</th><th>COUNT_PASSED</th><th>COUNT_FAILED</th><th>COUNT_BLOCKED</th><th>COUNT_CAUTION</th><th>COUNT_NOT_RUN</th><th>COUNT_NOT_APPLICABLE</th><th>TESTER_LOGIN</th><th>TESTER_FULLNAME</th><th>TEST_SET_NAME</th><th>PROJECT_GROUP_NAME</th></tr>
      <xsl:for-each select="ROW">
        <tr><td><xsl:value-of select="TEST_RUNS_PENDING_ID"/></td><td><xsl:value-of select="NAME"/></td><td><xsl:value-of select="CREATION_DATE"/></td><td><xsl:value-of select="LAST_UPDATE_DATE"/></td><td><xsl:value-of select="COUNT_PASSED"/></td><td><xsl:value-of select="COUNT_FAILED"/></td><td><xsl:value-of select="COUNT_BLOCKED"/></td><td><xsl:value-of select="COUNT_CAUTION"/></td><td><xsl:value-of select="COUNT_NOT_RUN"/></td><td><xsl:value-of select="COUNT_NOT_APPLICABLE"/></td><td><xsl:value-of select="TESTER_LOGIN"/></td><td><xsl:value-of select="TESTER_FULLNAME"/></td><td><xsl:value-of select="TEST_SET_NAME"/></td><td><xsl:value-of select="PROJECT_GROUP_NAME"/></td>
        </tr>
      </xsl:for-each>
        </table>
    </xsl:template>
</xsl:stylesheet>

    Running the report and expected output

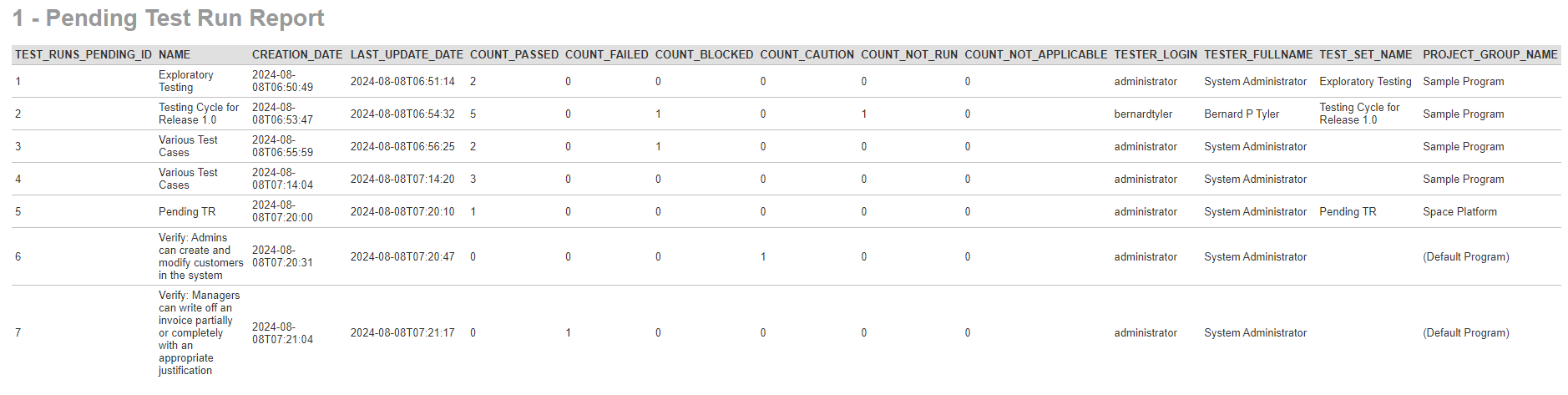

    As a result of the report execution you should get something like:

Please note that running selected Test Cases without a Test Set listed as 'Various Test Cases' in the column with Name of the Test Set.
